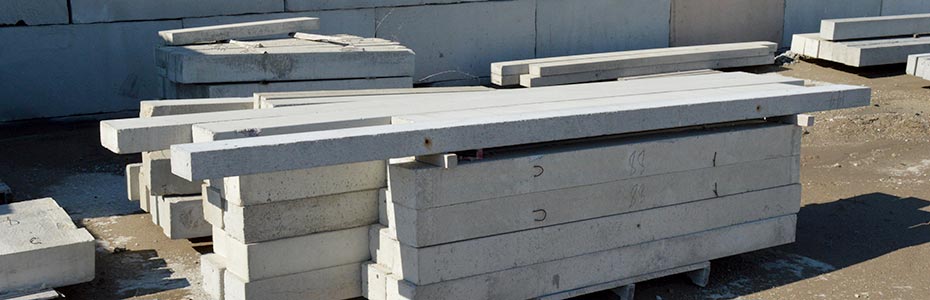

Precast Concrete Lintels
Precast concrete beams, reinforced with rebar depending on length and weight they have to support. Lintels are used as headers over block or stone construction building windows, doors and openings. Sizes are listed below:
Lintels 4''W x 8''H |
Code |
Size |
Weight |
| - - - - - - - - |
4CL48 |
4''W x 8''H x 48''L |
96 lbs. |
| - - - - - - - - |
4CL56 |
4''W x 8''H x 56''L |
112 lbs. |
| - - - - - - - - |
4CL64 |
4''W x 8''H x 64''L |
128 lbs. |
| - - - - - - - - |
4CL72 |
4''W x 8''H x 72''L |
144 lbs. |
| - - - - - - - - |
4CL80 |
4''W x 8''H x 80''L |
160 lbs. |
| - - - - - - - - |
4CL88 |
4''W x 8''H x 88''L |
176 lbs. |
| - - - - - - - - |
4CL96 |
4''W x 8''H x 96''L |
192 lbs. |
| - - - - - - - - |
4CL104 |
4''W x 8''H x 104''L |
208 lbs. |
| - - - - - - - - |
4CL112 |
4''W x 8''H x 112''L |
224 lbs. |
| - - - - - - - - |
4CL120 |
4''W x 8''H x 120''L |
240 lbs. |
| - - - - - - - - |
4CL128 |
4''W x 8''H x 128''L |
256 lbs. |
| - - - - - - - - |
4CL136 |
4''W x 8''H x 136''L |
272 lbs. |
| - - - - - - - - |
4CL144 |
4''W x 8''H x 144''L |
288 lbs. |
Lintels 6''W x 8''H |
Code |
Size |
Weight |
| - - - - - - - - |
6CL48 |
6''W x 8''H x 48''L |
160 lbs. |
| - - - - - - - - |
6CL56 |
6''W x 8''H x 56''L |
185 lbs. |
| - - - - - - - - |
6CL64 |
6''W x 8''H x 64''L |
211 lbs. |
| - - - - - - - - |
6CL72 |
6''W x 8''H x 72''L |
252 lbs. |
| - - - - - - - - |
6CL80 |
6''W x 8''H x 80''L |
270 lbs. |
| - - - - - - - - |
6CL88 |
6''W x 8''H x 88''L |
295 lbs. |
| - - - - - - - - |
6CL96 |
6''W x 8''H x 96''L |
320 lbs. |
| - - - - - - - - |
6CL104 |
6''W x 8''H x 104''L |
350 lbs. |
| - - - - - - - - |
6CL112 |
6''W x 8''H x 112''L |
380 lbs. |
| - - - - - - - - |
6CL120 |
6''W x 8''H x 120''L |
410 lbs. |
| - - - - - - - - |
6CL128 |
6''W x 8''H x 128''L |
450 lbs. |
| - - - - - - - - |
6CL136 |
6''W x 8''H x 136''L |
475 lbs. |
| - - - - - - - - |
6CL144 |
6''W x 8''H x 144''L |
515 lbs. |
Lintels 8''W x 8''H |
Code |
Size |
Weight |
| - - - - - - - - |
8CL48 |
8''W x 8''H x 48''L |
192 lbs. |
| - - - - - - - - |
8CL56 |
8''W x 8''H x 56''L |
224 lbs. |
| - - - - - - - - |
8CL64 |
8''W x 8''H x 64''L |
256 lbs. |
| - - - - - - - - |
8CL72 |
8''W x 8''H x 72''L |
288 lbs. |
| - - - - - - - - |
8CL80 |
8''W x 8''H x 80''L |
320 lbs. |
| - - - - - - - - |
8CL88 |
8''W x 8''H x 88''L |
352 lbs. |
| - - - - - - - - |
8CL96 |
8''W x 8''H x 96''L |
384 lbs. |
| - - - - - - - - |
8CL104 |
8''W x 8''H x 104''L |
416 lbs. |
| - - - - - - - - |
8CL112 |
8''W x 8''H x 112''L |
448 lbs. |
| - - - - - - - - |
8CL120 |
8''W x 8''H x 120''L |
480 lbs. |
| - - - - - - - - |
8CL128 |
8''W x 8''H x 128''L |
512 lbs. |
| - - - - - - - - |
8CL136 |
8''W x 8''H x 136''L |
544 lbs. |
| - - - - - - - - |
8CL144 |
8''W x 8''H x 144''L |
576 lbs. |
