Septic Tanks

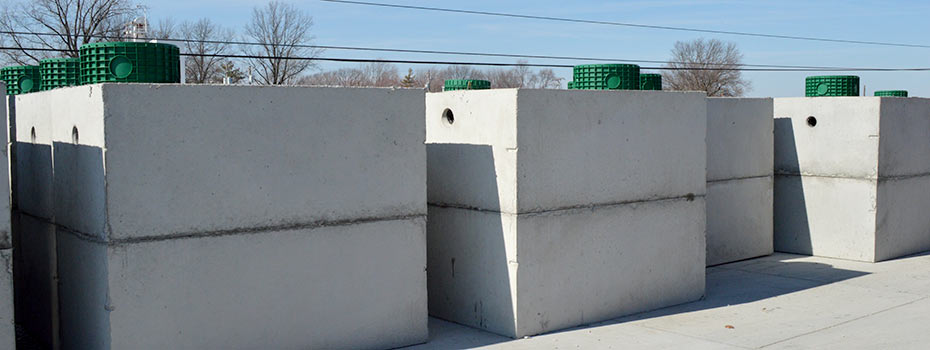

Precast Septic Tanks

All septic tanks include a plastic riser 24'' diameter and 12'' tall and lid positioned over the outlet. An Effluent Filter EF-6 manufactured by Tuf-tite is included for the outlet. 4'' boot seal fittings are used for the inlets and outlets. The holes in the septic tank top measure as followed: one 12'' hole over the inlet and a 20'' hole over the outlet inside the riser.

All tank sizes are available in dosing tanks. Dosing tanks include a plastic riser 24'' diameter and 12'' tall, a 3'' concrete riser pan, and a plastic lid positioned over the outlet end. The outlet is cast with a 2'' boot seal fitting.

Code Description Actual Size Hole Size Inlet Outlet Weight
750T 750 gal. 2 piece septic 8'L x 3'8''W x 5'6''D 8'6''L x 4'2''W x 6'6''D 56'' 53'' 3,500 lbs/ea.
1000T 1,000 gal. 2 piece septic 8'L x 4'W x 6'6''D 8'6''L x 4'6''W x 7'6''D 68'' 65'' 4,000 lbs/ea.
1500T 1,500 gal. 2 piece septic 8'L x 3'8''W x 5'6''D 8'6''L x 4'2''W x 6'6''D 70'' 67'' 5,500 lbs/ea.
1100T 1,100 gal. 1 piece septic 10'6''L x 6'6''W x 4'9''D 11'5''L x 7'5''W x 5'9''D 41.75'' 38.5'' 7,000 lb bottom, 4,000 lb top
15001PT 1,500 gal. 1 piece septic 12'2''L x 5'7''W x 5'1''D 13'2''L x 6'7''W x 6'1''D 51.5'' 48.5'' 9,000 lb bottom, 4,000 lb top
1500GT 1,500 gal. 1 piece grease trap 12'2''L x 5'7''W x 5'1''D 13'2''L x 6'7''W x 6'1''D 49.5'' 46.5'' 9,000 lb bottom, 4,000 lb top

**All dimensions on the hole excavation allow for 1 ft. of dirt to cover the tank.



divide

Septic System Supplies / Distribution Boxes

All Distribution Boxes come with a lid...

Code Description Holes Size
5HD Distribution Box 5 Hole Box 16.5'' x 26'' x 14''
7HD Distribution Box 7 Hole Box 16'' x 30'' x 13''
8HD Distribution Box 8 Hole Box 22.5'' x 34'' x 14''
13HD Distribution Box 13 Hole Box 49'' x 15'' x 13.5''

(Distribution Box Lids are also available separately)
