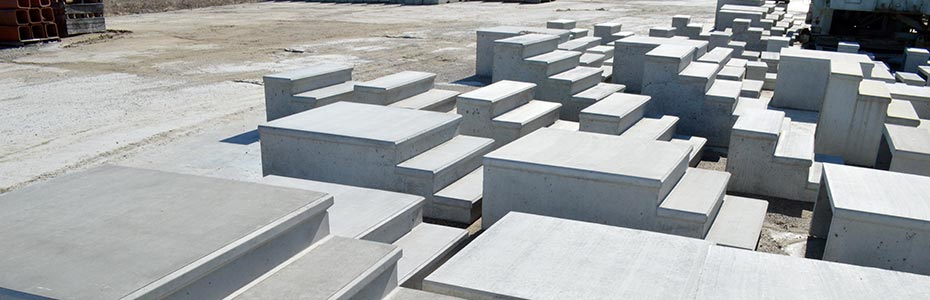

Precast Concrete Steps
All precast steps are rebar reinforced and they are designed for residential and commercial structures. All steps can be delivered on our boom truck and set in place, as long as the area for placement is ready and accessible.
3ft. Wide Steps
| Code |
Description |
Size |
Weight |
| 361S |
1 Step |
7"H x 12"D x 3'W |
90 lbs. |
| 361SWP |
1 Step with Platform |
7"H x 42"D x 3'W |
450 lbs. |
| 362S |
2 Step |
14"H x 24"D x 3'W |
375 lbs. |
| 362SWP |
2 Step with Platform |
14"H x 54"D x 3'W |
975 lbs. |
| 363S |
3 Step |
21"H x 36"D x 3'W |
650 lbs. |
| 363SWP |
3 Step with Platform |
21"H x 66"D x 3'W |
1,300 lbs. |
| 364S |
4 Step |
28"H x 48"D x 3'W |
950 lbs. |
| 364SWP |
4 Step with Platform |
28"H x 78"D x 3'W |
1,700 lbs. |
4ft. Wide Steps
| Code |
Description |
Size |
Weight |
| 481S |
1 Step |
7"H x 12"D x 4'W |
120 lbs. |
| 481SWP |
1 Step with Platform |
7"H x 42"D x 4'W |
550 lbs. |
| 482S |
2 Step |
14"H x 24"D x 4'W |
500 lbs. |
| 482SWP |
2 Step with Platform |
14"H x 54"D x 4'W |
1,125 lbs. |
| 483S |
3 Step |
21"H x 36"D x 4'W |
875 lbs. |
| 483SWP |
3 Step with Platform |
21"H x 66"D x 4'W |
1,500 lbs. |
| 484S |
4 Step |
28"H x 48"D x 4'W |
1,250 lbs. |
| 484SWP |
4 Step with Platform |
28"H x 78"D x 4'W |
2,000 lbs. |
| 485S |
5 Step |
35"H x 60"D x 4'W |
1,560 lbs. |
| 485SWP |
5 Step with Platform |
35"H x 96"D x 4'W |
2,500 lbs. |
5ft. Wide Steps
| Code |
Description |
Size |
Weight |
| 601S |
1 Step |
7"H x 12"D x 5'W |
250 lbs. |
| 601SWP |
1 Step with Platform |
7"H x 48"D x 5'W |
650 lbs. |
| 602S |
2 Step |
14"H x 24"D x 5'W |
690 lbs. |
| 602SWP |
2 Step with Platform |
14"H x 60"D x 5'W |
1,500 lbs. |
| 603S |
3 Step |
21"H x 36"D x 5'W |
1,125 lbs. |
| 603SWP |
3 Step with Platform |
21"H x 72"D x 5'W |
2,000 lbs. |
| 604S |
4 Step |
28"H x 48"D x 5'W |
1,625 lbs. |
| 604SWP |
4 Step with Platform |
28"H x 84"D x 5'W |
2,700 lbs. |
| 605S |
5 Step |
35"H x 60"D x 5'W |
1,950 lbs. |
| 605SWP |
5 Step with Platform |
35"H x 96"D x 5'W |
3,300 lbs. |
6ft. Wide Steps
| Code |
Description |
Size |
Weight |
| 721S |
1 Step |
7"H x 12"D x 6'W |
300 lbs. |
| 721SWP |
1 Step with Platform |
7"H x 48"D x 6'W |
780 lbs. |
| 722S |
2 Step |
14"H x 24"D x 6'W |
850 lbs. |
| 722SWP |
2 Step with Platform |
14"H x 60"D x 6'W |
1,800 lbs. |
| 723S |
3 Step |
21"H x 36"D x 6'W |
1,350 lbs. |
| 723SWP |
3 Step with Platform |
21"H x 72"D x 6'W |
2,500 lbs. |
| 724S |
4 Step |
28"H x 48"D x 6'W |
1,950 lbs. |
| 724SWP |
4 Step with Platform |
28"H x 84"D x 6'W |
3,200 lbs. |
| 725S |
5 Step |
35"H x 60"D x 6'W |
2,450 lbs. |
| 725SWP |
5 Step with Platform |
35"H x 96"D x 6'W |
4,000 lbs. |
